According to customer's demand, this glass explosion-proof lamp can choose traditional T8 electronic ballast or T8LED light source products

Based on environmental protection, energy conservation, the following configuration only for LED to introduce products.

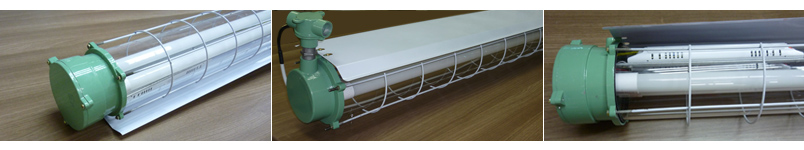

1. Aluminum lamp body plug, high transmittance glass, lamps and lanterns on the back of the reflector, IP54 / WF1 corrosion protection grade level.

2. Optional T8LED fluorescent lamp configuration.

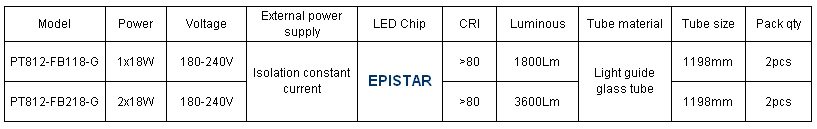

A: Built-in T8 tubes, the glass of the constant current power supply power rating is 2 x16w, power factor is 0.55, Ra > 72, luminous flux > 3600 lm.

B: External isolation constant-current power supply of T8 glass tubes, the 2 x18w/Max2x20w rated power, power factor 0.98, Ra > 80, luminous flux > 3600 lm.

3. Each configuration has its characteristics, the customer please to meet project requirements. According to customer requirements and other emergency components.

Applications：

1. For the dangerous sites with explosive air mixture: 1 division, 2 division.

2.With explosive gas mixture type IIA and IIB.

3. Temperature identification: T1 ~ T6. Explosion-proof marks/Exd II BT4.

4. Storage, steel, petrochemical, power plants, venues and other explosive dangerous sites.
